Floor Mouldings &
End Mould
For finishing the end of an exposed run of flooring planks, transitioning between carpet and flooring.
Ordering Considerations
If desired, difference in height between flooring and carpet can be specified. If not specified, drop dimension will be made equal to thickness of flooring provided.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” end moulds can be made from one 7” x 48” plank).
For end moulds with large drop heights (3/4” or greater), we may only be able to get one or two mouldings from a single 7” x 48” plank.

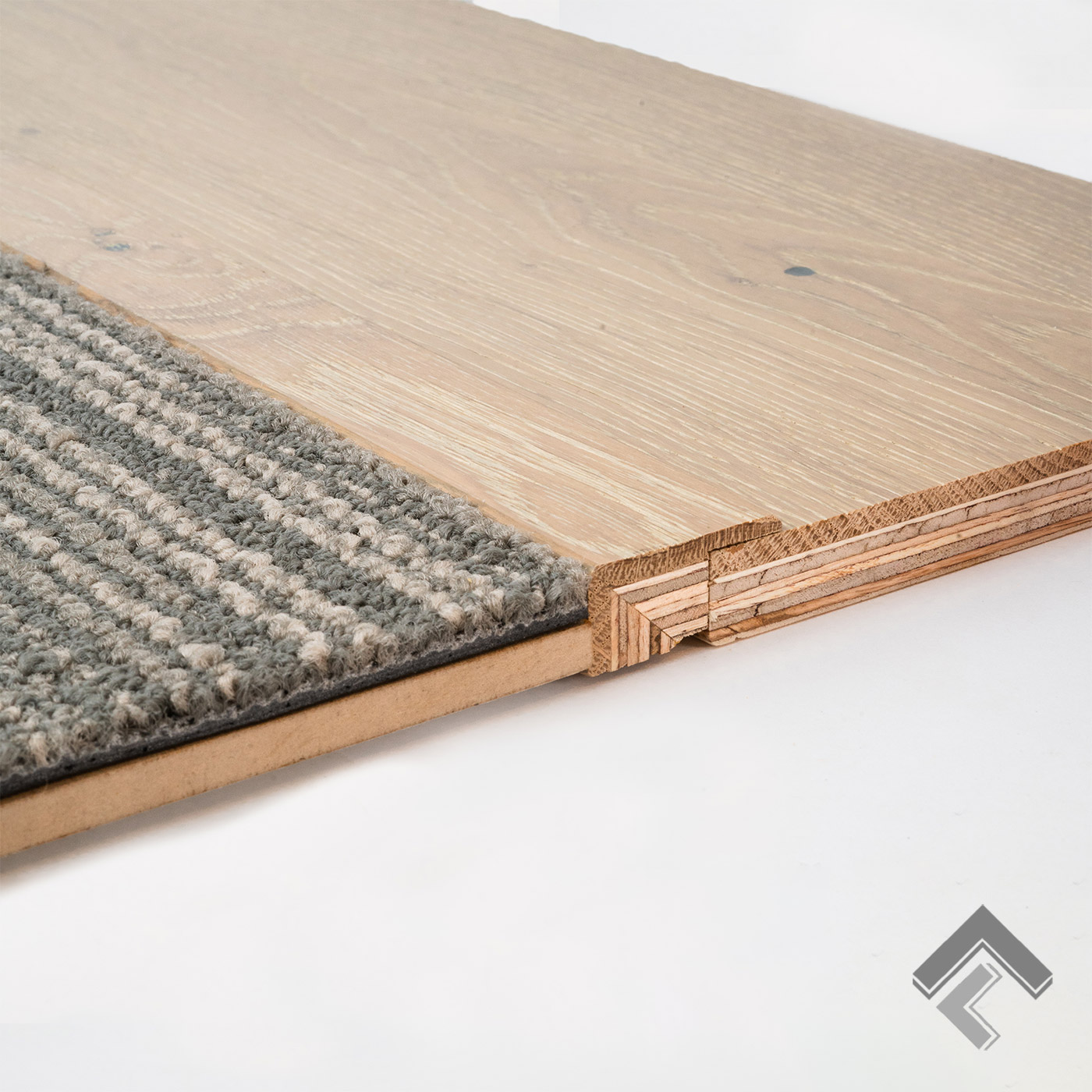

Hardwood End Mould
Laminate End Mould
Vinyl End Mould

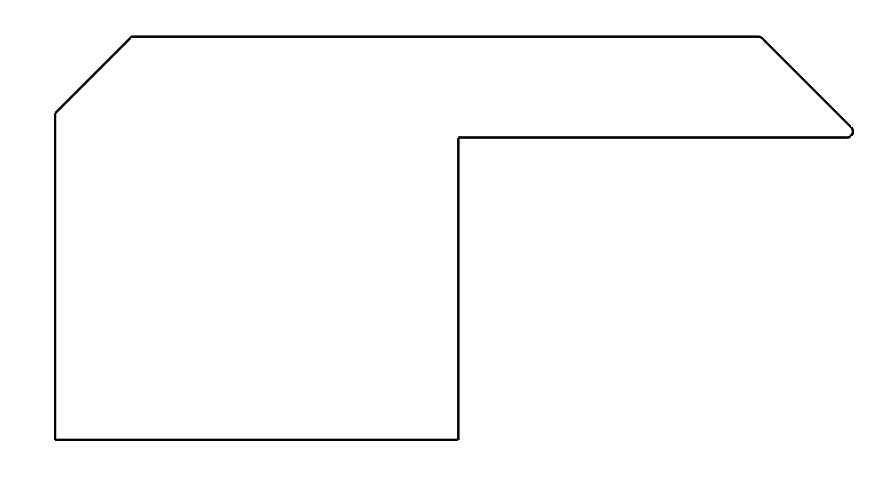

End Mould

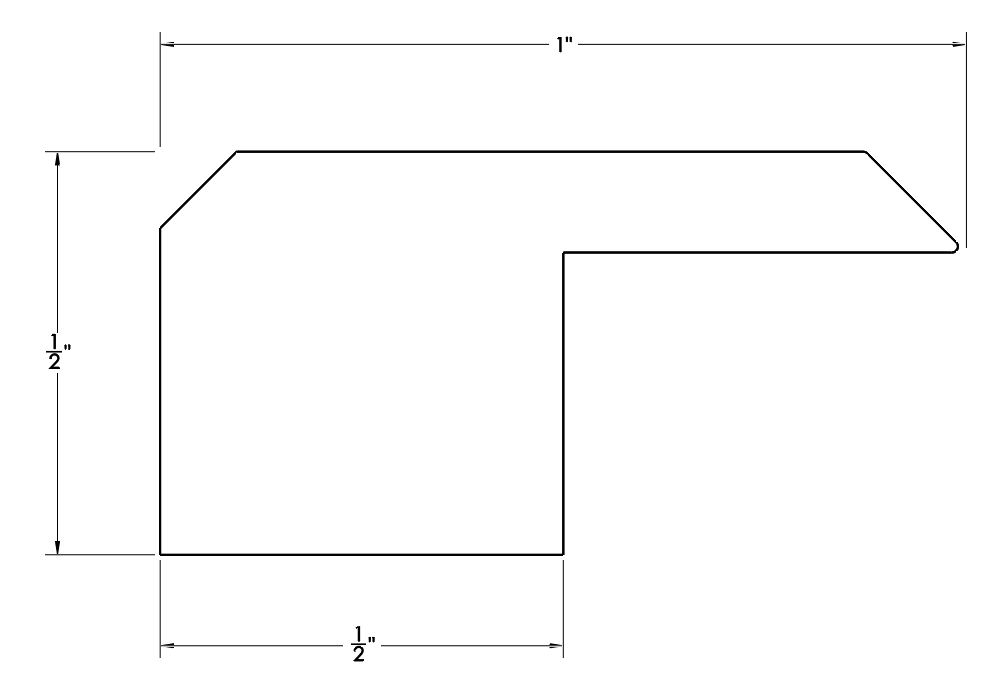

End Mould Standard Dim.
Overlap Reducer
For transitioning between floors of different thicknesses. Available in flush or overlap style; overlap covers any cut or unfinished edges and allows floating floors to maintain movement. Difference in floor heights must be specified.
Ordering Considerations
We cannot manufacture structurally sound vinyl reducers with drop heights less than 3/16”; we will supply offset t-moulds when drops less than 3/16” are required.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” reducers can be made from one 7” x 48” plank).
For vinyl reducers with large drop heights (3/4” or greater), we may only be able to get one or two mouldings from a single 7” x 48” vinyl plank.
Hardwood Overlap Reducer
Laminate Overlap Reducer
Vinyl Overlap Reducer
Shoe Mould
For transitioning/hiding gaps between flooring and a vertical surface; the same application as traditional quarter round. Available in standard or low profile (triangular).
Ordering Considerations
Please specify standard or low profile when ordering, as well as your desired dimensions.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” shoe moulds can be made from one 7” x 48” plank).

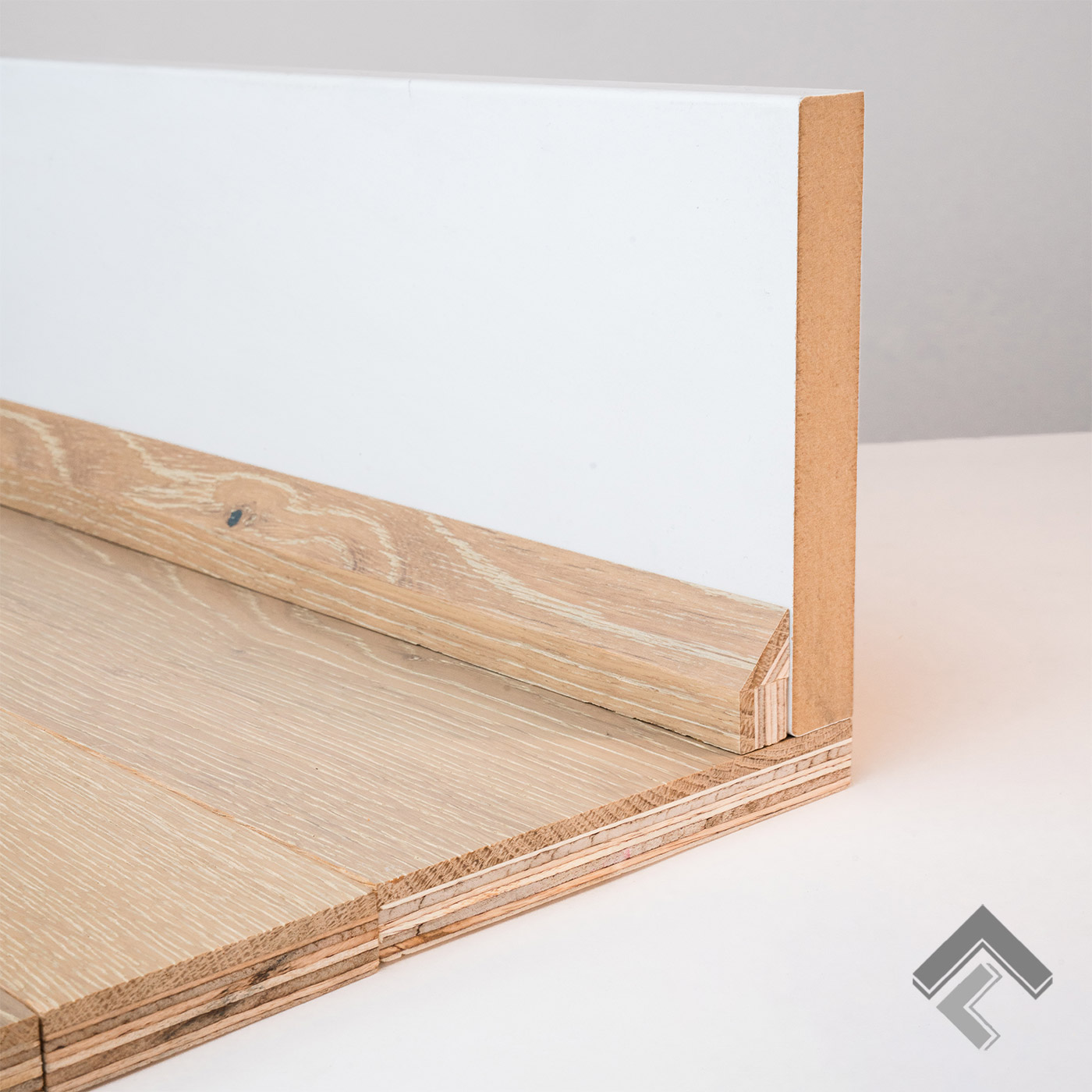

Hardwood Shoe Mould
Laminate Shoe Mould

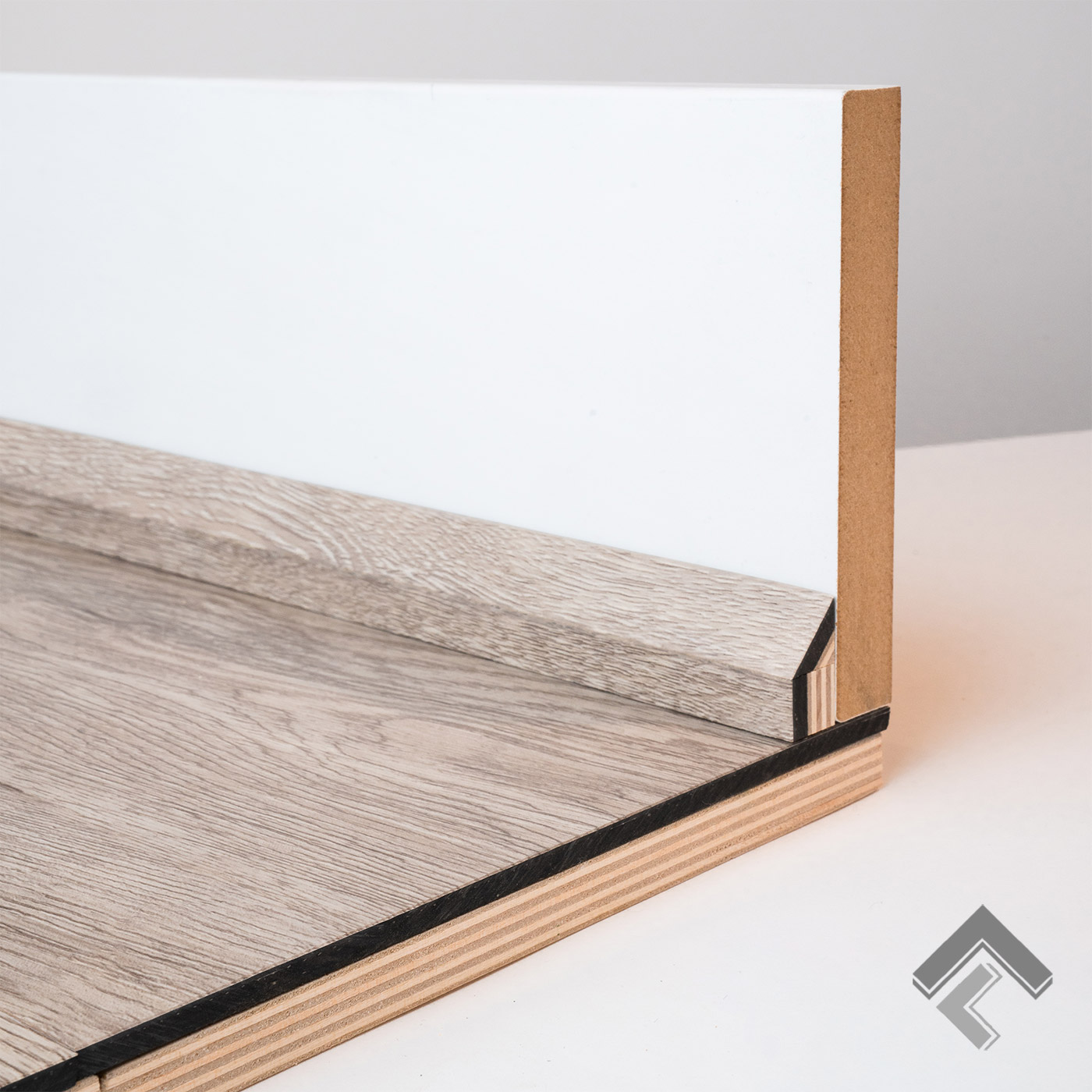

Vinyl Shoe Mould
T-Mould
For transitioning between floors of equal thickness.
Ordering Considerations
Custom offset can be specified; both vertical (height) and horizontal (width) offsets are available.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” T-moulds can be made from one 7” x 48” plank).
Hardwood T-Mould
Laminate T-Mould
Vinyl T-Mould

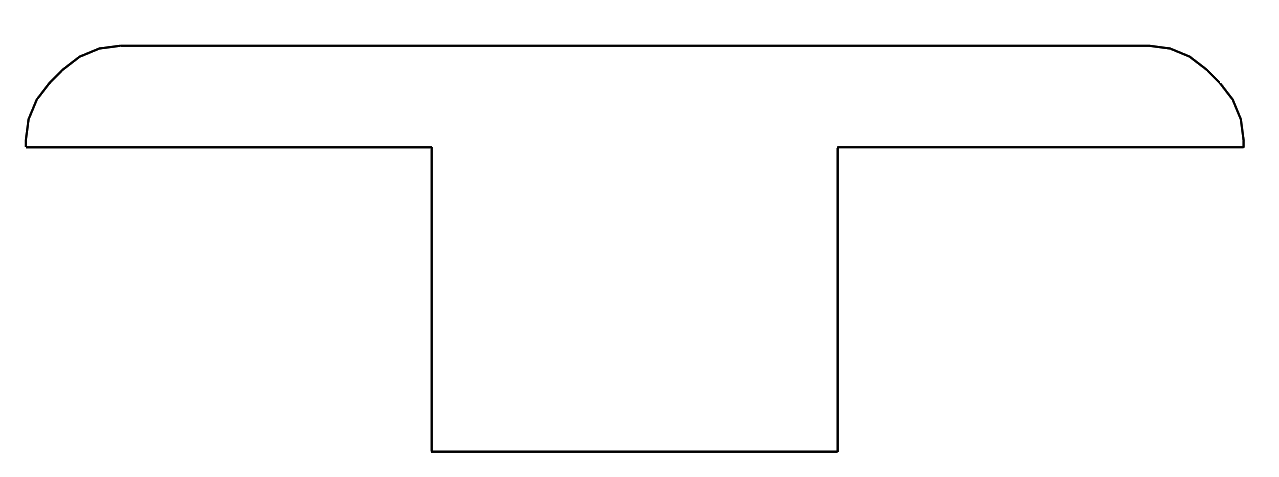

T-Mould

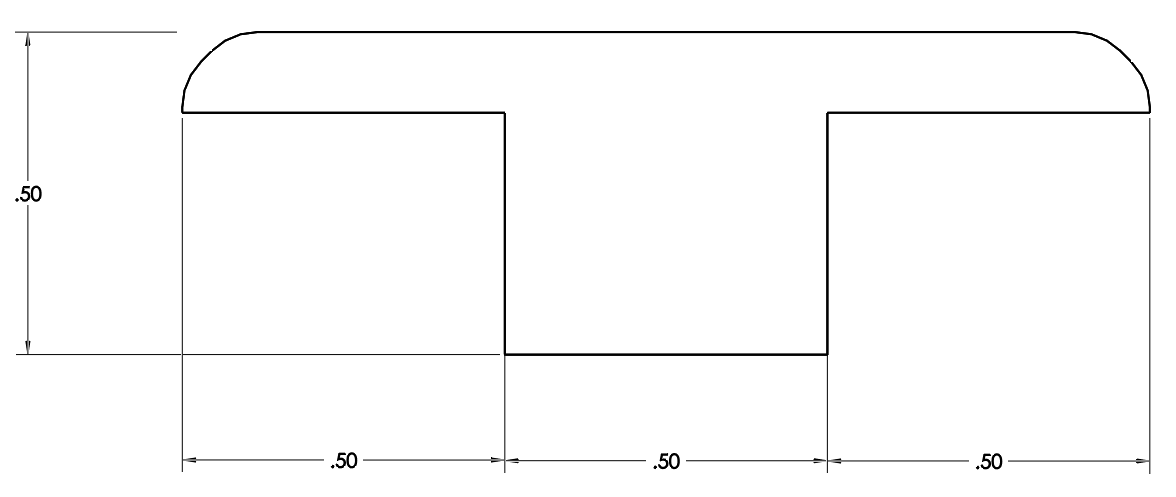

T-Mould Standard Dim.
L-Trim

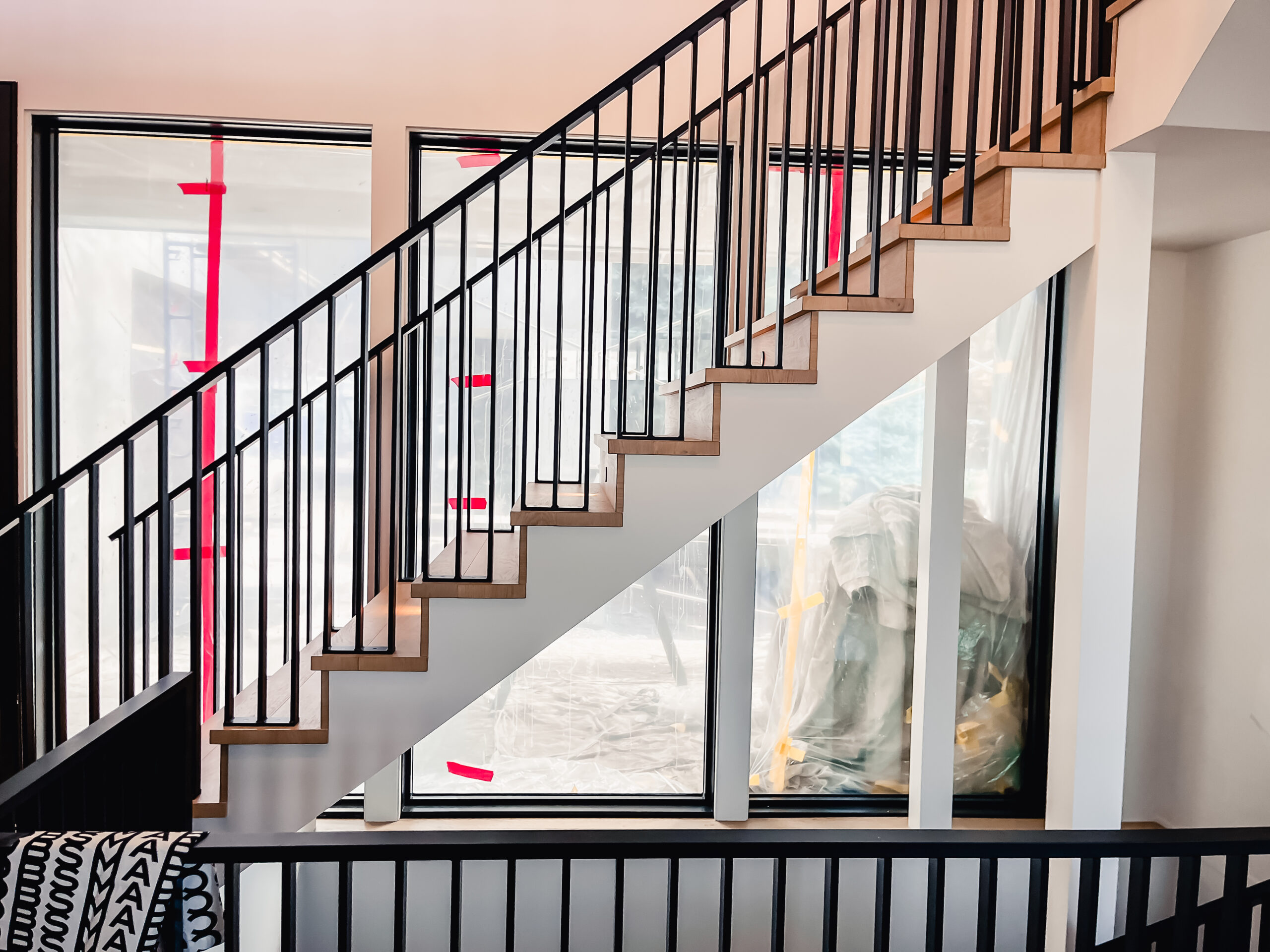

For capping the exposed edge of an open stair riser or for framing out a trap door.
Ordering Considerations
L-trim is an excellent finishing touch on open-ended staircases (i.e. when one or both sides of the staircase do not butt into a wall).
Standard L-trim length is 8” (per riser).
Custom dimensions can be accommodated, such as a 1” x 1” profile.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” pieces of L-trim can be made from one 7” x 48” plank).
Hardwood L-Trim
Hardwood L-Trim

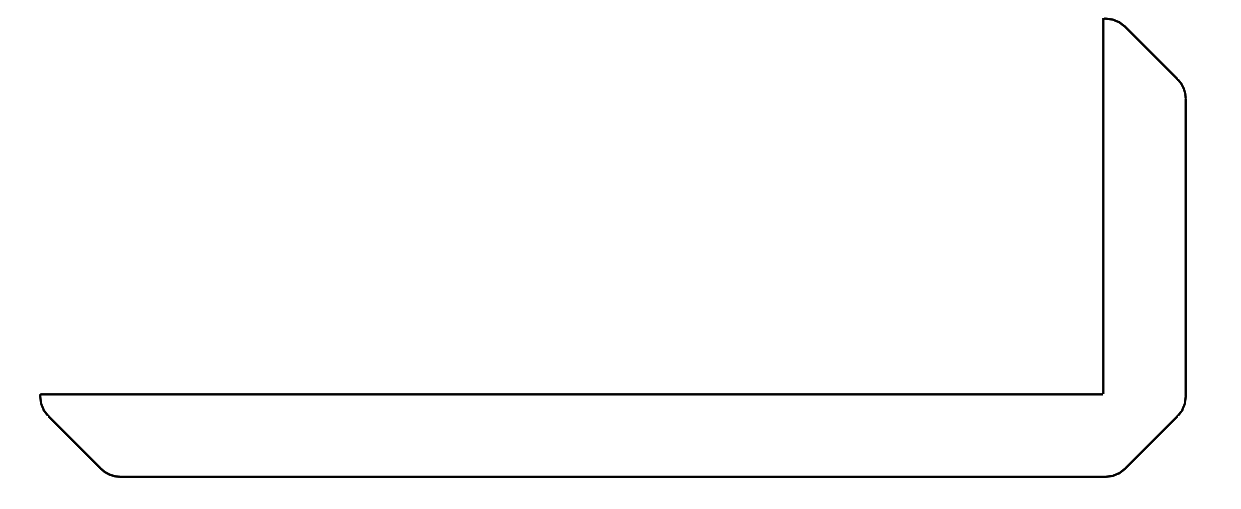

L-Trim

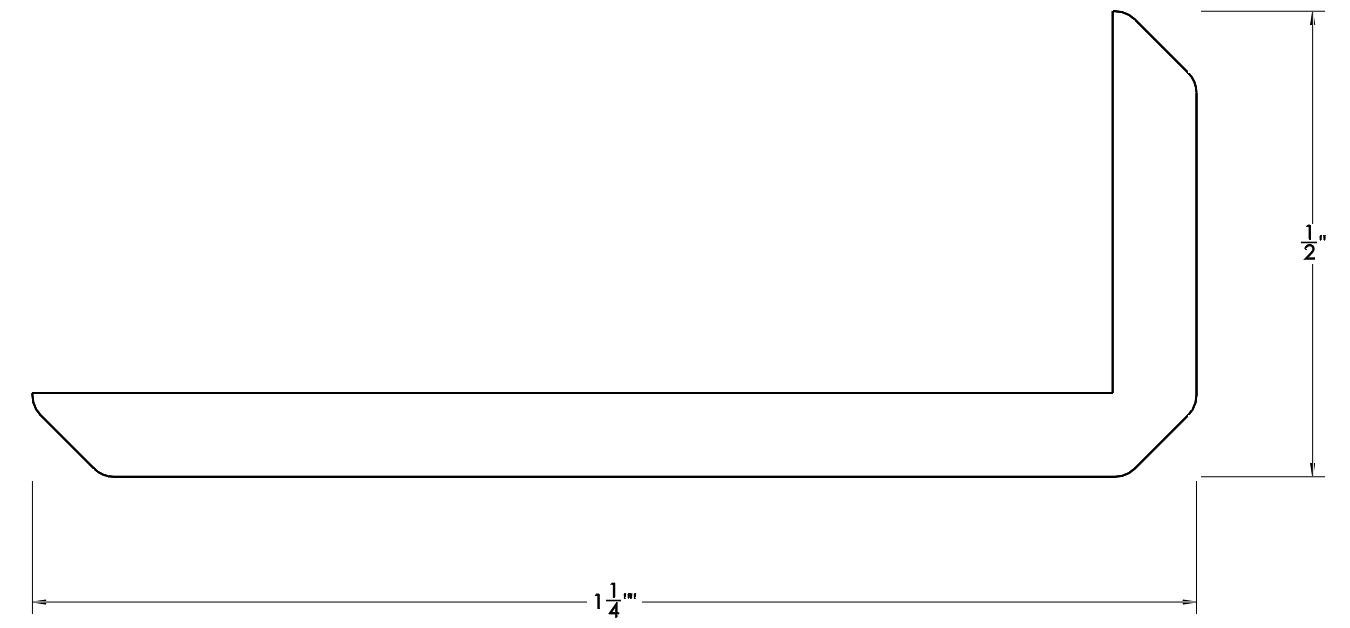

L-Trim Standard Dim.
Other Floor Mouldings & Transition Strips

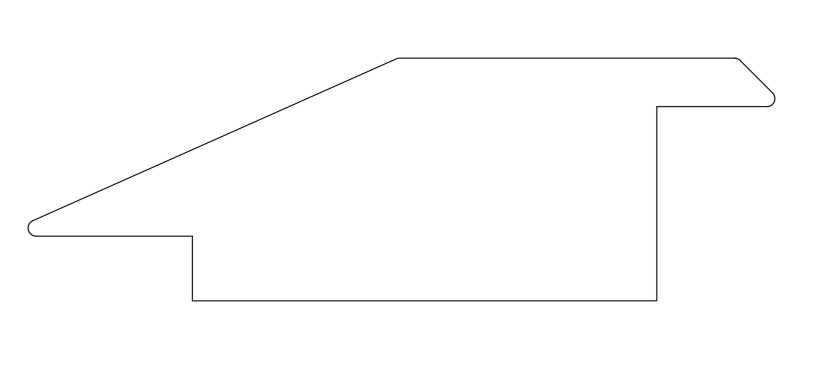

Carpet Reducer
For transitioning between a vinyl floor to carpet.
Available for:
Ordering Considerations
Vinyl Carpet Reducer is the perfect transition from Vinyl to Carpet on the same elevation of the subfloor. It provides an overlap on the low side, a plywood leg in the center and a robust lip on the high side.
- Overlap: Allows the Vinyl floor to remain floating/cover any cut edges.
- Center Leg: Allows a flat surface to adhere the transition to the subfloor
- Raised Edge: Allows for height of carpet pad and tucks the carpet at the smooth edge.
- Custom dimensions can be accommodated.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” pieces of carpet reducer can be made from one 7” x 48” plank).

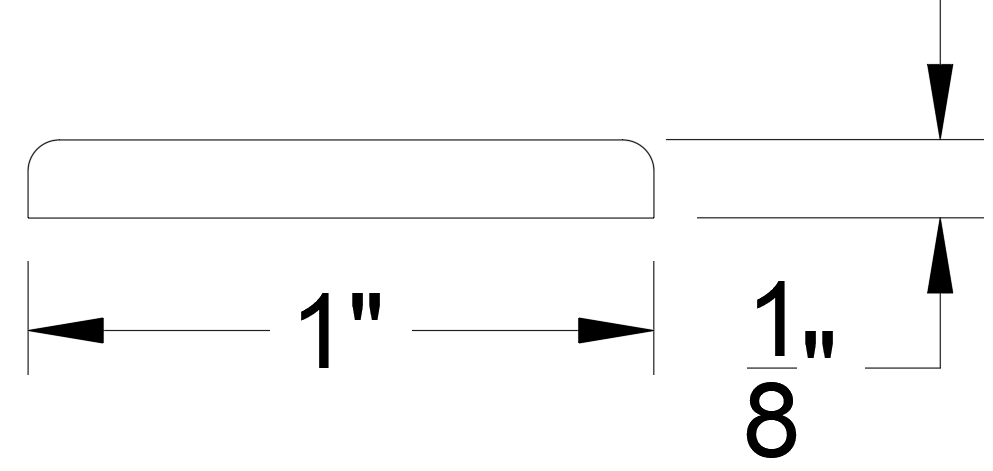

Burlap
For finishing against patio doors, cabinets, window frames and more.
Ordering Considerations
Burlap is an excellent finishing touch when trimming out your flooring against fixed objects. It allows you to hide an expansion gap and/or provide a clean edge against door thresholds, cabinets and patio doors.
Custom dimensions can be accommodated.
Material Requirements
Typically, one plank per five lengths of moulding (e.g. 5@48” pieces of burlap can be made from one 7” x 48” plank).

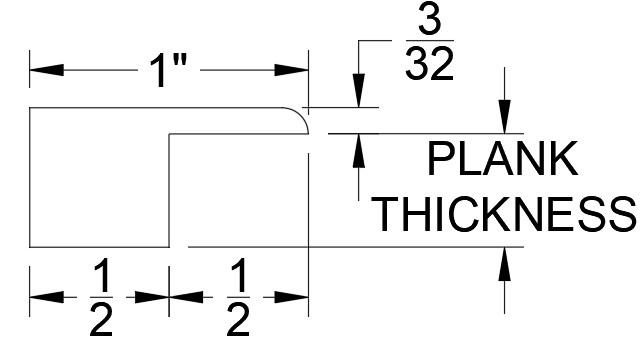

Unfinished End Mould
For finishing the end of an exposed run of flooring planks transitioning to a door sill, patio door or threshold.
Ordering Considerations
Unfinished End Mould is the perfect touch to maintain an expansion gaps. This is installed at perimeter of the floating and hardwood floor installations. Applications include:
- Patio doors
- Metal edging at the perimeter of tile flooring (Schlueter edge)
- Door thresholds
- Custom dimensions can be accommodated.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” pieces of unfinished end mould can be made from one 7” x 48” plank).

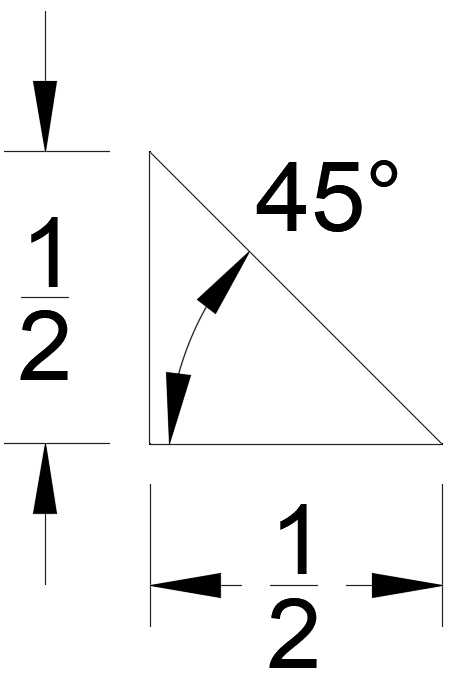

Small Triangle Shoe Mould
For finishing against patio doors, cabinets, window frames and more.
Ordering Considerations
Small Triangle Shoe Mould is an excellent finishing touch when trimming out your flooring against fixed objects. It allows you to hide an expansion gap and/or provide a clean edge against door thresholds, cabinets and patio doors.
Custom dimensions can be accommodated.
Material Requirements
Typically, one plank per five lengths of moulding (e.g. 5@48” pieces of small triangle shoe mould can be made from one 7” x 48” plank).

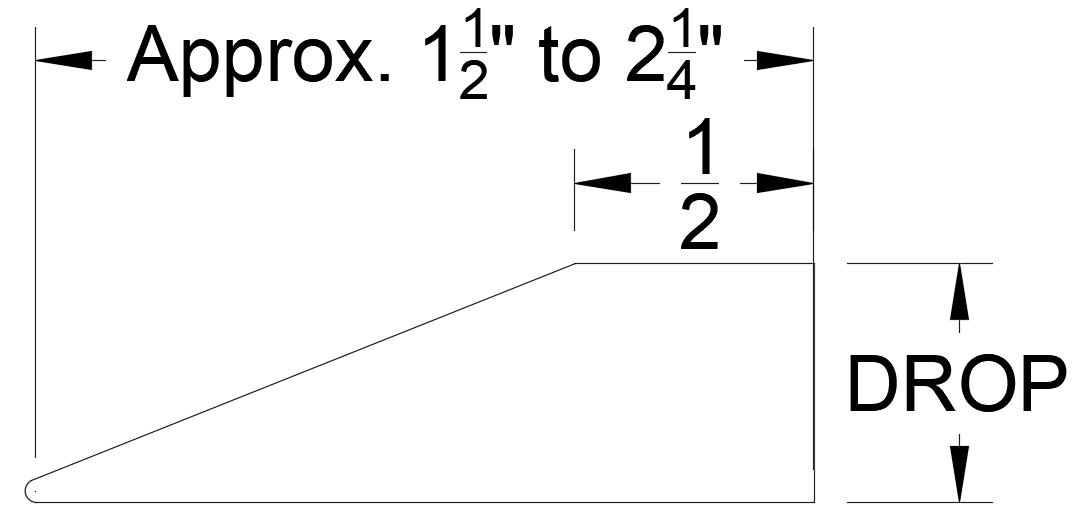

Flush Reducer
For transitioning between floors of different thicknesses. Flush is used when you have a “clean” or straight edge to place the transition against.
Difference in floor heights must be specified.
Ordering Considerations
We cannot manufacture structurally sound vinyl reducers with drop heights less than 3/16”; we will supply small end moulds when drops less than 3/16” are required.
Material Requirements
Typically, one plank per three lengths of moulding (e.g. 3@48” reducers can be made from one 7” x 48” plank).
For vinyl reducers with large drop heights (3/4” or greater), we may only be able to get one or two mouldings from a single 7” x 48” vinyl plank.
